ASB Line
its characteristics of reducing the recoil energy
if a rope breaks.
Anti Snap Back Line up
ASB SYSTEM
With loads exceeding the minimum breaking strength of the rope,
the kinetic energy generated when the rope is broken is immediately transferred in the tensile direction of the rope,
and the resulting Snapback phenomenon poses many risks.
The ASB system can reduce the 'Snap back' phenomenon
by absorbing the kinetic energy of the Core Rope,
thereby creating a safer mooring environment.
Safety for your crew
ASB (Anti Snap Back)
- Enables the rope to get more slowly broken compared to other general fiber ropes
- Reduces the recoil of rope and the “Snapback” zone by inserting a core rope
- Not influencing its basic performance in use
- Floats, perfectly suitable for mooring application
- Wet strength equals dry strength

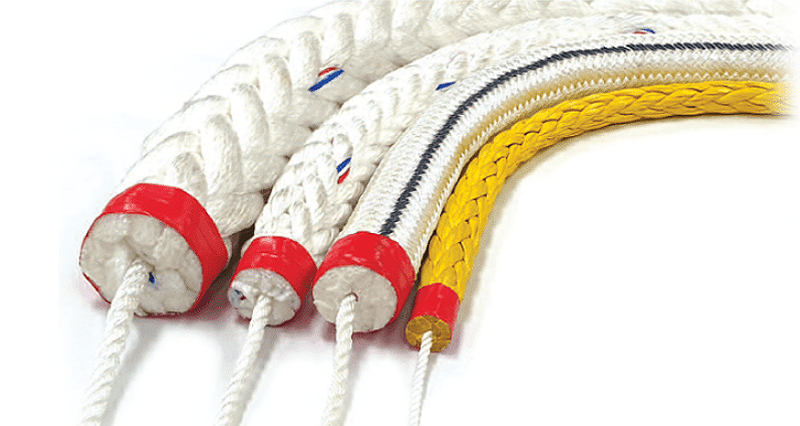

Line up
- TERAMAX (UHMWPE) 12 S/T Rope
- TERAMAX PLUS (UHMWPE) Double Braided Rope
- TERACORE 12 S/T Rope
Physical properties
| TERAMAX ASB, TERACORE ASB Rope | ||
|---|---|---|
| Type | TERAMAX ASB | TERACORE ASB |
| Material | UHMWPE fiber | Polyolefin/Polyester |
| Construction | 12 strand braided | 12 strand braided |
| Elongation | 4% | 16%~18% |
| Density | ( floating ) | (floating) |
| Melting Point | 150 ℃ | 165 ℃ / 265 |

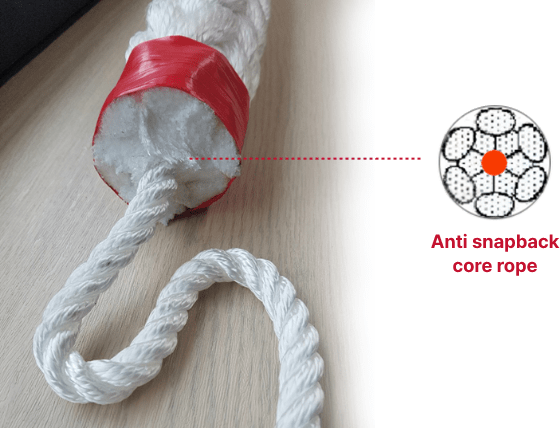

ASB ROPE STRUCTURE

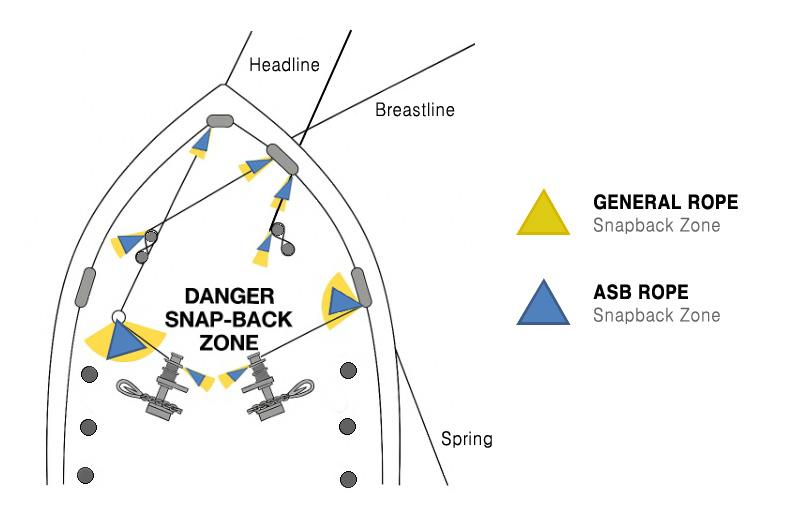

Snap back Zone
When ASB rope breaks up
Safety for your crew
Confirm the difference.
Check a regular rope and ASB rope in this video.
The Core absorbs kinetic energy, reduces the snapback
zone and creates a safer mooring environment.
-
General Rope
Perfect rope Breaking -
ASB Rope
Core rope Non-Breaking
